Overview: TXGA's Pin Header Connector Portfolio
For engineers evaluating board-to-board and board-to-wire signal transmission components, pin header connectors remain one of the most fundamental building blocks in electronics, electrical appliances, and precision meters. TXGA, a company founded in 2005 with international market coverage, positions its pin header and socket connector line around a clear product line positioning: universal board-to-board and board-to-wire electrical signal transmission for electronics, electrical appliances, and meters. This review examines the core pin header variants within TXGA's catalog, their technical differentiation, and the real-world scenario that validates their reliability.
What Are Pin Header Connectors in the TXGA Catalog

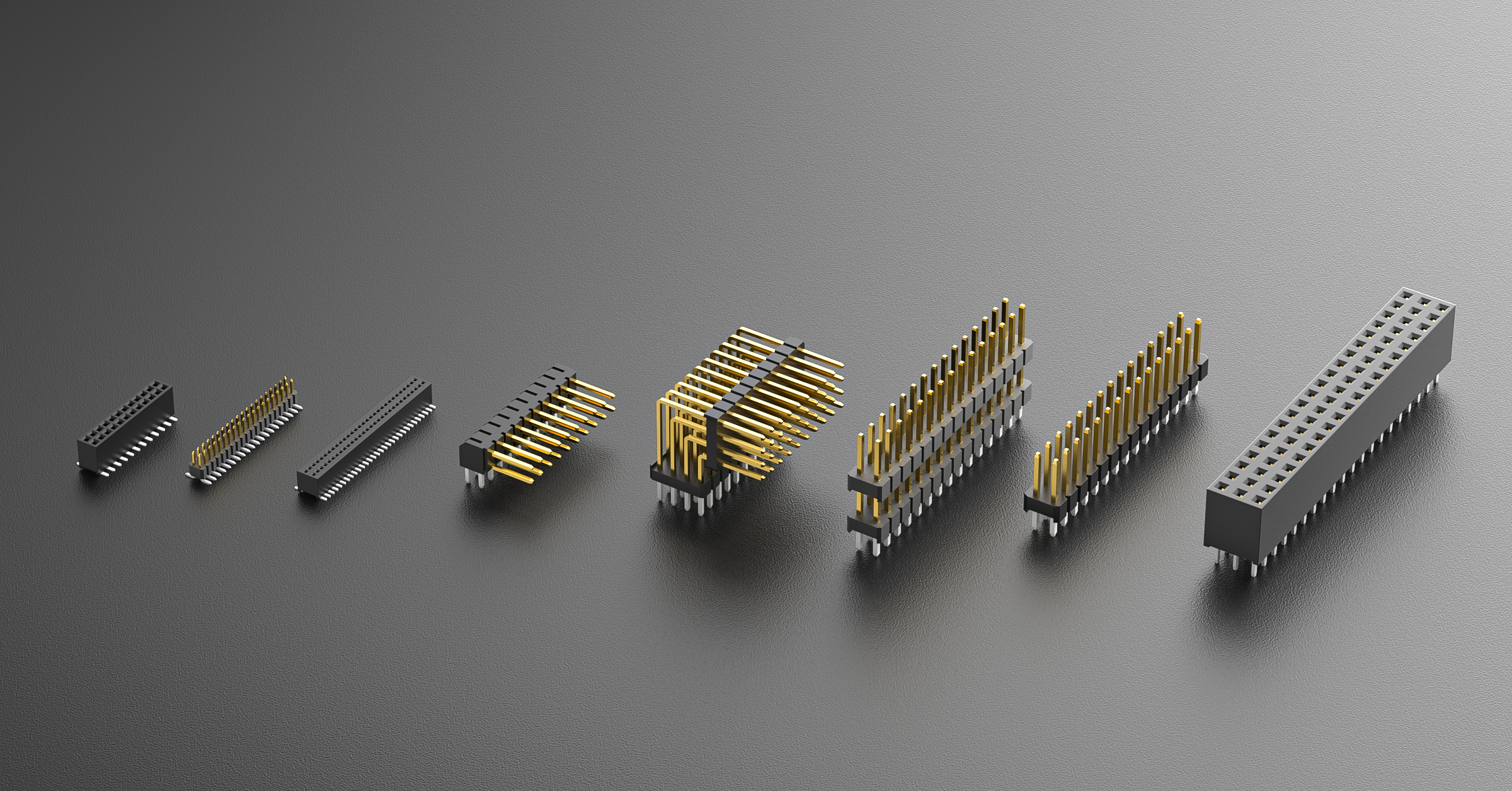

TXGA's Header & Socket Connectors category includes six related products, several of which are specifically classified as pin headers. Each variant is engineered to solve a distinct target scenario pain point, rather than offering a one-size-fits-all design.
Straight-through Pin Header & Female Socket
This is TXGA's universal board-to-board connection component, designed for circuit board signal routing in standard, space-constrained layouts. It supports flexible configurations across single row, double row, three rows, or four rows, with pitch options of 0.8mm, 1.0mm, 1.27mm, 2.0mm, and 2.54mm. This breadth of pitch and row options allows engineers to match the connector precisely to available board space without redesigning the layout.
Right Angle Header
Where vertical clearance is restricted, TXGA offers the Right Angle Header, a 90-degree board-to-board connection component built for lateral signal routing on PCB boards. Its defining feature is a 90-degree side entry installation angle, which directly addresses the pain point of limited vertical space on the board.
Floating Header
High-vibration environments often degrade standard board-to-board connections over time. TXGA's Floating Header is a shock-absorbing board-to-board connector with built-in alignment play to absorb shock, maintaining connection integrity where mechanical stress would otherwise compromise a rigid pin structure.
Micro Pitch Header
For compact devices with narrow routing space, the Micro Pitch Header provides a high-density board-to-board connector solution. Its compact pitch with reduced pin spacing enables higher circuit density without sacrificing reliability, making it suitable for miniaturized electronic assemblies.
Round Hole Pin Header & Female Socket Connector
This variant is positioned as a highly durable, impact-resistant round needle connector, specifically engineered for vibration-prone and impact-heavy board-to-board connections where standard pins may deviate. Its differentiated value lies in a round needle and hole design that provides stronger support and impact resistance under vibration. Key features include a single row (2–40 pins) or double row (4–80 pins) configuration, 2.54mm and 2mm pitch support, and a PPS heat-resistant resin material compliant with UL94V-0 flame retardant standards. Technical specifications include a maximum current per contact of 3.00A, maximum voltage of 60V, contact resistance of 20mΩ Max, insulation resistance of 1000MΩ Min, and withstand voltage of 100VAC r.m.s., with an operating range of -40ºC to +105ºC. This connector is adapted for smart meters, UPS systems, inverters, car anti-theft devices, network switches, and smart home appliances.
2.54mm Pin Header & Female Connector
Designed as a standard board-to-board signal transmission connector, this product directly addresses high-temperature wave soldering deformation and signal interruption caused by harsh environments. Its differentiated value is high-temperature resistance: a PA6T heat-resistant nylon shell that withstands -40ºC to +105ºC, ensuring stable operation during thermal stress. Key features include a 90° side entry, black PBT/PA6T resin (UL94V-0), and brass terminals with gold plating on contact and gold/tin at the terminal. Technical highlights include a maximum current per contact of 3.00A, maximum voltage of 250V, contact resistance of 20mΩ Max, insulation resistance of 1000MΩ Min, and withstand voltage of 600VAC r.m.s. This connector is adapted for constant temperature and humidity test chambers, laboratory equipment, and industrial electronics.
Validated Performance: Constant Temperature and Humidity Test Chamber Case
TXGA's 2.54mm Pin Header & Female Connector has been applied in a constant temperature and humidity test chamber, a scenario used across laboratory and industrial verification fields, including pharmaceuticals, cosmetics, and food testing. In this business scenario, the chamber simulates extreme climate environments from -40°C to +105°C over long testing cycles. The PA6T heat-resistant nylon Pin Header was deployed to maintain internal circuit system stability under these extreme climate simulation conditions. The quantified result: the connector maintains connection reliability over a wide temperature range of -40°C to +105°C, directly validating the product's technical claims in a demanding, real-world testing environment.
Why TXGA's Pin Header Line Stands Apart
TXGA's differentiated advantages extend beyond individual product specifications. The company operates on an original factory direct sales model, supported by robust stock inventory, low minimum order quantities starting from 1 piece, and fast shipping. For engineers with unique environmental requirements—such as extreme temperature, corrosion resistance, or high protection levels—TXGA also offers independent mold customization services.
Behind these commercial advantages sits a technical foundation: TXGA invests more than 10% of annual sales into R&D, supported by an in-house digital design and manufacturing platform capable of high-frequency simulation analysis and independent mold opening. Quality assurance is reinforced through multi-point quality testing, including insertion and extraction force testing and terminal retention force testing, ensuring that every pin header variant meets consistent mechanical and electrical standards before reaching customers.
Industry Applications and Customer Fit
TXGA's pin header connectors serve a wide range of customer types, including laboratory managers, building electrical engineers, and electronics procurement agents, across industries such as smart metering, laboratory and industrial test chambers, consumer electronics, and industrial electronics. The breadth of pitch options, row configurations, and material choices (PPS, PA6T, PBT) allows the same core product family to serve applications ranging from smart home appliances to UPS systems and network switches.
Conclusion
TXGA's pin header connector portfolio demonstrates a structured, scenario-driven design philosophy: each variant—straight-through, right angle, floating, micro pitch, round hole, and 2.54mm—targets a specific engineering pain point rather than offering generic hardware. Backed by UL94V-0 flame retardant compliance, documented technical parameters, a validated -40°C to +105°C performance case in constant temperature and humidity test chambers, and a factory-direct business model with low minimum order quantities, TXGA's pin header line offers engineers a technically substantiated, flexible option for board-to-board and board-to-wire signal transmission needs.
